First look: wasmCloud and Cosmonic

Posted by on 25 April, 2023

This post was originally published on this site

As you likely know by now, WebAssembly, or wasm, is an efficient, cross-platform, cross-language way to run code almost anywhere, including in a browser and on a server—even in a database. Cosmonic is a commercial platform-as-a-service (PaaS) for wasm modules. It builds on the open-source wasmCloud. This technology preview starts with a quick overview of wasm, then we’ll set up wasmCloud and Cosmonic and see what we can do with them.

What is wasm?

WebAssembly (wasm) is a “binary instruction format for a stack-based virtual machine.” It’s a portable compilation target for programming languages, including C, C++, C#, Rust, Go, Java, PHP, Ruby, Swift, Python, Kotlin, Haskell, and Lua; Rust is often the preferred language for wasm. There are three wasm-specific languages: AssemblyScript, Grain, and Motoko. Wasm targets include browsers (currently Chrome, Firefox, Safari, and Edge), Node.js, Deno, Wasmtime, Wasmer, and wasm2c.

Wasm tries to run at native speed in a small amount of memory. It runs in a memory-safe, sandboxed execution environment, even on the web.

WebAssembly System Interface (WASI) is a modular system interface for WebAssembly. Wasm has a component model with a W3C proposed specification. WebAssembly Gateway Interface (Wagi) is a proposed implementation of CGI for wasm and WASI. Spin is a multi-language framework for wasm applications.

What is wasmCloud?

wasmCloud is a CNCF-owned open source software platform that uses wasm and NATS to build distributed applications composed of portable units of WebAssembly business logic called actors. wasmCloud supports TinyGo and Rust for actor development. It also supports building platforms, which are capability providers. wasmCloud includes lattice, a self-forming, self-healing mesh network using NATS that provides a unified, flattened topology. wasmCloud runs almost everywhere: in the cloud, at the edge, in the browser, on small devices, and so on. The wasmCloud host runtime uses Elixir/OTP and Rust.

Many wasmCloud committers and maintainers work for Cosmonic (the company). Additionally, the wasmCloud wash cloud shell works with Cosmonic (the product).

What is Cosmonic?

Cosmonic is both a company and a product. The product is a WebAssembly platform as a service (PaaS) that builds on top of wasmCloud and uses wasm actors. Cosmonic offers a graphical cloud user interface for designing applications, and its own shell, cosmo, that complements wash and the wasmCloud GUI. Supposedly, anything you build that works in plain wasmCloud should work automatically in Cosmonic.

A host is a distributed, wasmCloud runtime process that manages actors and capability providers. An actor is a WebAssembly module that can handle messages and invoke functions on capability providers. A capability is an abstraction or representation of some functionality required by your application that is not considered part of the core business logic. A capability provider is an implementation of the representation described by a capability contract. There can be multiple providers per capability with different characteristics.

A link is a runtime-defined connection between an actor and a capability provider. Links can be changed without needing to be redeployed or recompiled.

A constellation is a managed, isolated network space that allows your actors and providers to securely communicate with each other regardless of physical or logical location; essentially, a Cosmonic-managed wasmCloud lattice. A super constellation is a larger constellation formed by securely connecting multiple environments through Cosmonic.

A wormhole is an ingress point into your constellation. An OCI distribution is a standard for artifact storage, retrieval, and distribution, implemented by (for example) the Azure Container Registry and the GitHub artifact registry.

The infrastructure view shows the virtual hosts running in your Cosmonic constellation. The logic view shows the logical relationships between components in your Cosmonic constellation or super constellation.

Installing and testing wasmCloud

Installation of wasmCloud varies with your system. I used brew on my M1 MacBook Pro; it installed more than I wanted because of dependencies, particularly the Rust compiler and cargo package manager, which I prefer to install from the Rust language website using rustup. Fortunately, a simple brew uninstall rust cleared the way for a standard rustup installation. While I was installing languages, I also installed TinyGo, the other language supported for wasmCloud actor development.

After installation, I asked the wash shell to tell me about its capabilities:

martinheller@Martins-M1-MBP ~ % wash --help
                               _____ _                 _    _____ _          _ _
                              / ____| |               | |  / ____| |        | | |
 __      ____ _ ___ _ __ ___ | |    | | ___  _   _  __| | | (___ | |__   ___| | |
   / / / _` / __| '_ ` _ | |    | |/ _ | | | |/ _` |  ___ | '_  / _  | |
   V  V / (_| __  | | | | | |____| | (_) | |_| | (_| |  ____) | | | |  __/ | |
   _/_/ __,_|___/_| |_| |_|_____|_|___/ __,_|__,_| |_____/|_| |_|___|_|_|

A single CLI to handle all of your wasmCloud tooling needs

Usage: wash [OPTIONS] <COMMAND>

  app       Manage declarative applications and deployments (wadm) (experimental)
  build     Build (and sign) a wasmCloud actor, provider, or interface
  call      Invoke a wasmCloud actor
  claims    Generate and manage JWTs for wasmCloud actors
  ctl       Interact with a wasmCloud control interface
  ctx       Manage wasmCloud host configuration contexts
  down      Tear down a wasmCloud environment launched with wash up
  drain     Manage contents of local wasmCloud caches
  gen       Generate code from smithy IDL files
  keys      Utilities for generating and managing keys
  lint      Perform lint checks on smithy models
  new       Create a new project from template
  par       Create, inspect, and modify capability provider archive files
  reg       Interact with OCI compliant registries
  up        Bootstrap a wasmCloud environment
  validate  Perform validation checks on smithy models
  help      Print this message or the help of the given subcommand(s)

  -o, --output <OUTPUT>  Specify output format (text or json) [default: text]
  -h, --help             Print help information
  -V, --version          Print version information

Then I made sure I could bring up a wasmCloud:

martinheller@Martins-M1-MBP ~ % wash up
🏃 Running in interactive mode, your host is running at http://localhost:4000
🚪 Press `CTRL+c` at any time to exit
17:00:20.343 [info] Wrote configuration file host_config.json
17:00:20.344 [info] Wrote configuration file /Users/martinheller/.wash/host_config.json
17:00:20.344 [info] Connecting to control interface NATS without authentication
17:00:20.344 [info] Connecting to lattice rpc NATS without authentication
17:00:20.346 [info] Host NCZVXJWZAKMJVVBLGHTPEOVZFV4AW5VOKXMD7GWZ5OSF5YF2ECRZGXXH (gray-dawn-8348) started.
17:00:20.346 [info] Host issuer public key: CCXQKGKOAAVXUQ7MT2TQ57J4DBH67RURBKT6KEZVOHHZYPJKU6EOC3VZ
17:00:20.346 [info] Valid cluster signers: CCXQKGKOAAVXUQ7MT2TQ57J4DBH67RURBKT6KEZVOHHZYPJKU6EOC3VZ
17:00:20.351 [info] Started wasmCloud OTP Host Runtime
17:00:20.356 [info] Running WasmcloudHostWeb.Endpoint with cowboy 2.9.0 at (http)
17:00:20.357 [info] Access WasmcloudHostWeb.Endpoint at http://localhost:4000
17:00:20.453 [info] Lattice cache stream created or verified as existing (0 consumers).
17:00:20.453 [info] Attempting to create ephemeral consumer (cache loader)
17:00:20.455 [info] Created ephemeral consumer for lattice cache loader

While I had the wasmCloud running, I viewed the website at port 4000 on my local machine:

wasmCloud local dashboard IDG

Figure 1. wasmCloud local dashboard on port 4000 after running wash up. There are no actors, providers, or links.

Then I stopped the wasmCloud:

martinheller@Martins-M1-MBP ~ % wash down

✅ wasmCloud host stopped successfully
✅ NATS server stopped successfully
🛁 wash down completed successfully



Page 2

Installing and testing Cosmonic

I installed the Cosmonic CLI from the Quickstart page and asked it to tell me about itself:

martinheller@Martins-M1-MBP ~ % cosmo --help

⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⠏  ⢻⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷
⣿⣿⣿⣿⣿⣿⣿⣿⣿⡿⠁    ⠙⢿⣿⣿⣿⣿⣿⣿⣿⣿⣿
⣿⣿⣿⣿⣿⣿⡿⠛⠁        ⠈⠛⠛⠿⠿⠿⣿⣿⡿
⣿⣿⣿⣿⣿⣿⣷⣦⣀        ⣀⣤⣶⣶⣾⣿⣿⣿⣷
⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷⡄    ⣴⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿
⢿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣆  ⣼⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⡿

      C O S M O N I C

Usage: cosmo [OPTIONS] <COMMAND>

  build     Build (and sign) an actor, provider, or interface
  down      Stop the wasmCloud host and NATS leaf launched by `up`
  launch    Launch an actor on a local wasmCloud host
  login     Securely download credentials to authenticate this machine with Cosmonic infrastructure
  new       Create a new project from template
  up        Start a NATS leaf and wasmCloud host connected to Cosmonic infrastructure, forming a super constellation
  tutorial  Run through the tutorial flow
  whoami    Check connectivity to Cosmonic and query device identity information
  help      Print this message or the help of the given subcommand(s)

  -o, --output <OUTPUT>  Specify output format (text or json) [default: text]
  -h, --help             Print help
  -V, --version          Print version

Then, I went through the online interactive drag-and-drop tutorial to create an echo application, resulting in this diagram:

cosmonic logic view IDG

Figure 2. Cosmonic Logic view after going through the online tutorial. The reversed arrow indicates that the wormhole is connected for ingress into the echo application.

I also ran the local Quickstart hello tutorial:

martinheller@Martins-M1-MBP ~ % cosmo tutorial hello

⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⠏  ⢻⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷
⣿⣿⣿⣿⣿⣿⣿⣿⣿⡿⠁    ⠙⢿⣿⣿⣿⣿⣿⣿⣿⣿⣿
⣿⣿⣿⣿⣿⣿⡿⠛⠁        ⠈⠛⠛⠿⠿⠿⣿⣿⡿
⣿⣿⣿⣿⣿⣿⣷⣦⣀        ⣀⣤⣶⣶⣾⣿⣿⣿⣷
⣿⣿⣿⣿⣿⣿⣿⣿⣿⣷⡄    ⣴⣾⣿⣿⣿⣿⣿⣿⣿⣿⣿
⢿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⣆  ⣼⣿⣿⣿⣿⣿⣿⣿⣿⣿⣿⡿

      C O S M O N I C
Welcome to cosmo!
✅ You're already authenticated!
⚙️  It looks like you don't have a wasmCloud host running locally. Launching one with:
    `cosmo up`
>>> ⠀⢀
Ok to download NATS and wasmCloud to /Users/martinheller/.cosmo ?: y
🟢 A wasmCloud host connected to your constellation has been started!

To stop the host, run:
    'cosmo down'
>>> ⡋⢀
To start the tutorial, we'll generate a new project with `cosmo new`. Proceed?: y
🌐 Next we'll download code for your hello world actor to the hello/ directory...
>>> ⢋⠁                      Cloning into '.'...
>>> ⠈⢙                      remote: Enumerating objects: 86, done.
remote: Counting objects: 100% (86/86), done.
remote: Compressing objects: 100% (56/56), done.
>>> ⠈⡙
>>> ⠀⢙
>>> ⠀⡙                      remote: Total 86 (delta 23), reused 76 (delta 22), pack-reused 0
Receiving objects: 100% (86/86), 312.66 KiB | 1.02 MiB/s, done.
Resolving deltas: 100% (23/23), done.
>>> ⠀⠩                      Already on 'main'
Your branch is up to date with 'origin/main'.
🔧   Using template subfolder `hello-world/rust`...
🔧   Generating template ...
[ 1/15]   Done: .cargo/config.toml
[ 7/15]   Done: .gitignore
✨   Done! New project created /Users/martinheller/hello
>>> ⠀⠠              No keypair found in "/Users/martinheller/.wash/keys/martinheller_account.nk".
                    We will generate one for you and place it there.
                    If you'd like to use alternative keys, you can supply them as a flag.

No keypair found in "/Users/martinheller/.wash/keys/hello_module.nk".
                    We will generate one for you and place it there.
                    If you'd like to use alternative keys, you can supply them as a flag.

>>> ⠀⢀
Now, we'll launch your hello actor and connect it to its capabilities. Proceed?: y
🚀 Launching your actor with:
    cosmo launch -p hello
🚀 Actor launched!
✅ You already have a Cosmonic-managed host running!
🔗 Launching capability providers and linking them to your actor...
    In the future, you can start providers from the UI at
✅ You're already running a required capability provider: HTTP Server
🌌 Creating a wormhole connected to your actor...
    In the future, you can create wormholes from the UI at

👇 Here's what we did:
⭐️ We started a wasmCloud host on your machine, connected to your constellation
🚀 We launched the hello world actor on your local wasmCloud host
⚙️  We started a managed host on the Cosmonic platform in your constellation
   We started an HTTP server capability provider on this host
🔗 We linked the actor on your local host to the provider running on your Cosmonic-managed host
🌌 We created a wormhole associated with this actor, allowing you to access your hello world app from the internet

Feel free to browse the code placed in the `hello/` directory.

If you're interested in how to deploy custom code to Cosmonic, check out our docs at:

If you want to go through this tutorial again in the future, simply run:
    cosmo tutorial hello

🎉 That's it! Access your actor securely through a wormhole now:

martinheller@Martins-M1-MBP ~ % curl
Hello, World!%

At this point, both my online and offline tutorials appeared in my Cosmonic constellation:

Cosmonic Logic view. IDG

Figure 3. Cosmonic Logic view after completing both the online Echo tutorial and the offline Hello World tutorial. The two applications share a single HTTP-Wormhole provider but have separate URLs.

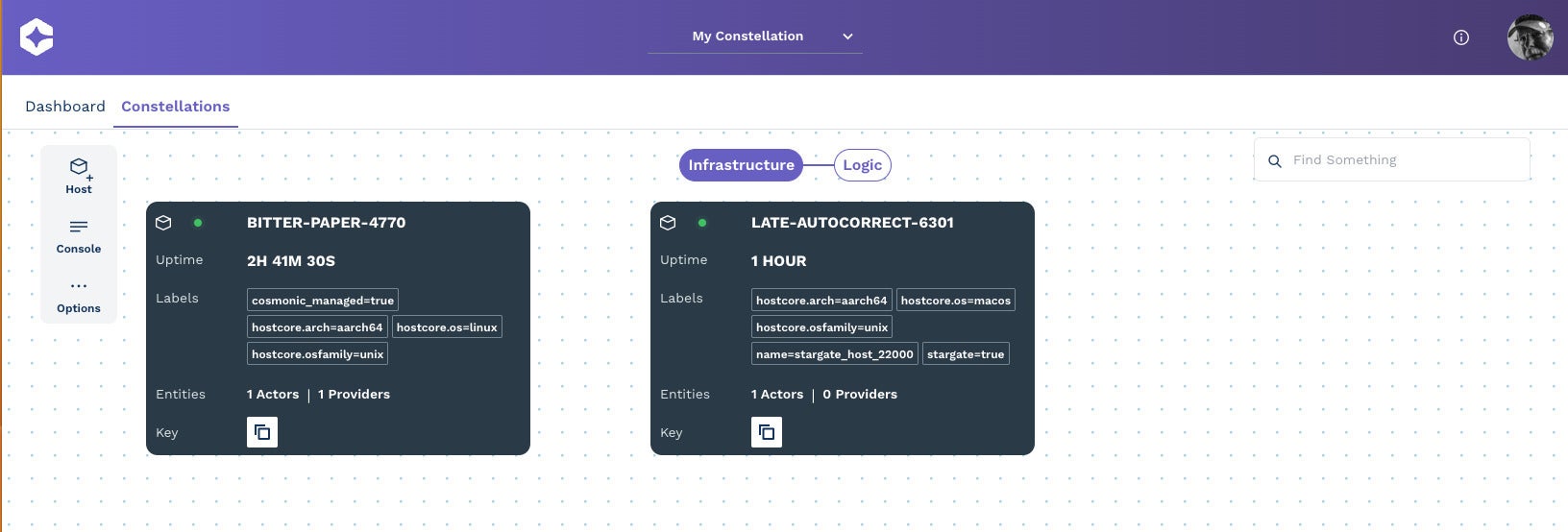

Cosmonic infrastructure view. IDG

Figure 4. Cosmonic Infrastructure view after completing both the online Echo tutorial and the offline Hello World tutorial.

Running cosmo down stops the local host and NATS server from cosmo tutorial hello, but doesn’t affect the online tutorial result. The code generated by the tutorial is remarkably simple, given that it’s creating a web application with a wormhole:

Rust source for the Cosmo tutorial. IDG

Figure 5. Rust source for Hello actor generated by cosmo tutorial hello, displayed in Visual Studio Code. Note that the actual implementation only amounts to one to four lines of Rust code, depending on how you count.


We could go on and explore Cosmonic’s pre-built capabilities and examples, wasmCloud examples, and even build a complete wasmCloud/Cosmonic application.

At this point, you should have a reasonably good feeling for what is possible with this technology. Given that wasmCloud is free and open source, and that Cosmonic’s developer preview is also currently free, I encourage you to explore those possibilities and see what you come up with.
